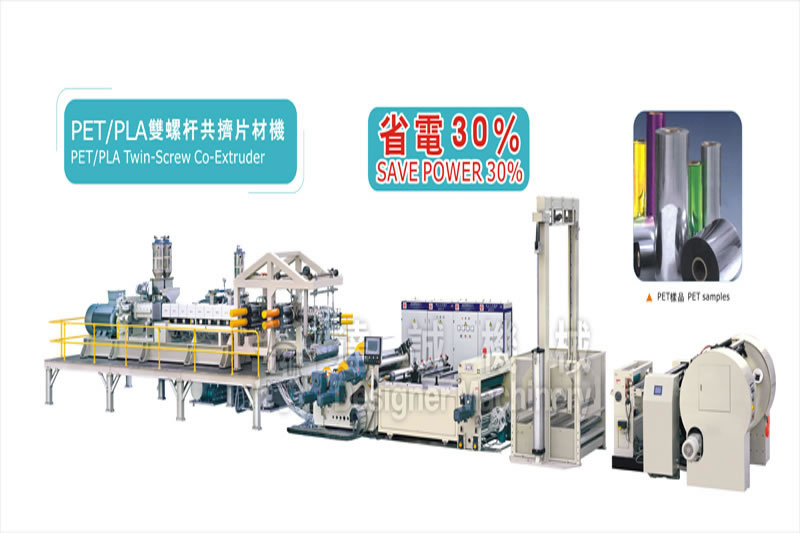

PET/PLA Twin-Screw Sheet Co-Extruder

1. This kind of PET/PLA twin-screw sheet co-extrusion line is mainly used to produce PET/PLA sheet. It is no needs pre-drying crystallization system. It is suitable for the material of second production, which is of high output, low energy consumption and high quality plastics.
2. The screw structure of the twin-screw co-extrusion line is modular organization and multiple-combination. It is not only suitable for PET material, but also suitable for PLA and starch biodegradable materials.
3. The barrel of the machine is equipped with double vacuum exhaust device to ensure that the water discharge completely.
4. Our PET/PLA twin-screw sheet co-extrusion line with capacity metering pump to ensure quantitative output and to automatically control the pressure setting and speed closed loop.
5. This kind of machine adopts PLC control system to automatically control the parameter setting, data computing and back, alarm and so on.

parameters

Model No.	WSJP75-1000	SJP75-1000	WSJP95-1000	WSJP95/58-1200
Suitable materials	PET/PLA	Starch based degradable material	PET/PLA	PET/PLA
Screw size	Φ72	Φ72	Φ93	Φ93
Screw form:	Toy bricks type	Toy bricks type	Toy bricks type	Toy bricks type
Sheet thickness	0.12-1.6mm	0.3-2.0mm	0.12-1.6mm	0.12-1.6mm
Sheet width	≤700mm	≤700mm	≤700mm	≤1000mm
Max throughput	350 kg/h	250-350 kg/h	700-800kg/h	800-900kg/h
Total capacity	200kw	200kw	375kw	475kw
